to this page of unusual magic squares. New material will be added here as it becomes available and time permits. Enjoy!
A Pandiagonal Torus
This pattern generates 50 order5 pandiagonal magic squares.
Magic Circles
Two diagrams show characteristics of order4.
Square with Special Numbers
Commemorates my Dad's 90th birthday.
Prime Heterosquare
Rivera's prime # squares have each line summing different.
Double HH
Ed Shineman constructed this order16 with HH embedded.
Shineman's Magic Diamonds
Two magic diamond patterns with special numbers.
Square with Embedded Star
Arto Heino's order8 contains a magic hexagon.
Square to Star
Heino's order4 magic square converts to an order8 star.
Franklin's Order8
Benjamin Franklin's order8 semimagic square.
A Beastly Magic Square
Patrick De Geest's Order6 magic square sums to 666.
Millennium Magic Square
Shineman's order16 pandiagonal with inlaid 2000.
Sagrada Familia Magic Square
A beautiful Spanish cathedral's magic square sums to 33.

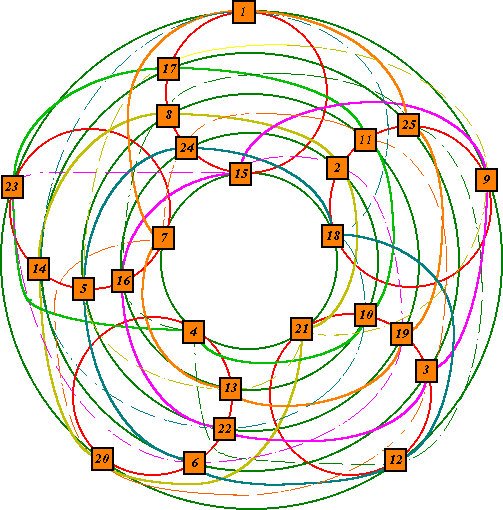

This pattern, which is a torus drawn in two dimensions may be used as an order5 pandiagonal magic square generator. Examples: Start at number 2, and follow the big circles, to generate the columns of the B magic square. 25 different pandiagonal magic squares can be formed this way by starting with each of
the 25 numbers on the model.

Actually, four magic squares may be constructed by following the radial lines, and another four by following the spiral lines, in either direction around the torus. However, three of these magic squares are just disguised versions of the fourth one, because they are rotations or reflections.

A 3D model
A. B.

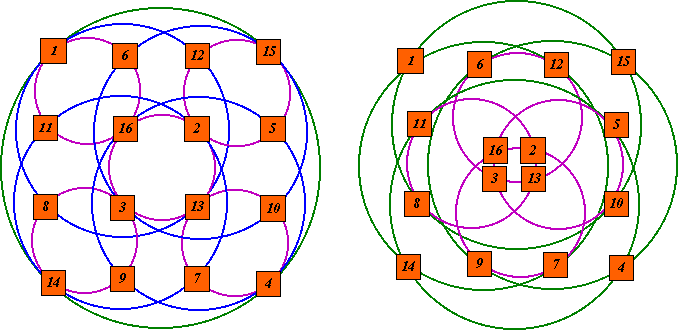

These two diagrams, between them, illustrate some relationships in this order4 magic
square.
1 6 12 15
A.
B.
11 16 2 5
1 + 15 + 4 + 14  biggest
circle
1 + 15 + 10 + 8  1 of 4 big circles
8 3 13 10
1 + 12 + 13 + 8  1 of 4
medium circles 11 + 2 + 13 + 8
1 of 4 small circles
14 9 7 4
1 + 6 + 16 + 11  1 of 5 small circles
Thanks for the idea to W. S. Andrews, Magic Squares and Cubes, Dover, 1960.

I designed this pandiagonal magic square to commemorate my Dad's 90^{th}
birthday. The three center numbers in the top row are his birth date, April 23/03. The 5
rows, 5 columns, the 2 main diagonals and the 10 broken diagonal pairs all sum to 90. Because this is also an Associative magic square, the corners of twentyfive 3 x 3 and twentyfive 5 x 5 squares, along with the center square in each case (including wraparound) also all sum to 90.
There is still more! Corners of 25 2 x 2 rhombics along with the center cell of
each. Example: 17 + 4 + 49 + 8 + 12 = 90. Also 25 3 x 3, 4 x 4, and 5 x 5 rhombics (including wraparound). An example of a 5 x 5 rhombic; 32 + 7 + 28 + 20 + 3 = 90. It is easier to visualize wraparound if you lay out multiple copies of the magic square like a magic carpet. For still more patterns summing to 90, see my Deluxe magic square, although not all those patterns are possible because this is not a pure magic square.
19
...................  137

5
41
13
59
31
37
41
109

17
3
47
67
53
59
61
173

7
83
11
101
67
43
47
157

23
29
127
71
227
167
151
139
149
439
The Order3 heterosquare on the left consists of 9 prime numbers. The 3 rows, 3 columns
and the 2 main diagonals all sum to different prime numbers. The sum of all 9 cells is
also a prime number.
Is this the square with the smallest possible total with eighteen
unique primes (including the totals)?
The Square on the right has identical features, but in addition consists of consecutive
primes.
Is this the square with the smallest possible total with nine
consecutive primes?
These squares designed by Carlos Rivera, Sept. 98. See his Web page on Prime Puzzles
& Problems at
http://www.sci.net.mx/~crivera/
98
79
178
95
162
63
194
47
210
255
2
239
18
143
114
159
158
179
78
163
94
195
62
211
46
3
254
19
238
115
142
99
100
77
180
93
164
61
196
45
212
253
4
237
20
141
116
157
155
182
75
166
91
198
59
214
43
6
251
22
235
118
139
102
101
76
181
92
165
60
197
44
213
252
5
236
21
140
117
156
153
184
73
168
89
200
57
216
41
8
249
24
233
120
137
104
103
74
183
90
167
58
199
42
215
250
7
234
23
138
119
154
151
186
71
170
87
202
55
218
39
10
247
26
231
122
135
106
105
72
185
88
169
56
201
40
217
248
9
232
25
136
121
152
149
188
69
172
85
204
53
220
37
12
245
28
229
124
133
108
107
70
187
86
171
54
203
38
219
246
11
230
27
134
123
150
148
189
68
173
84
205
52
221
36
13
244
29
228
125
132
109
110
67
190
83
174
51
206
35
222
243
14
227
30
131
126
147
146
191
66
175
82
207
50
223
34
15
242
31
226
127
130
111
112
65
192
81
176
49
208
33
224
241
16
225
32
129
128
145
160
177
80
161
96
193
64
209
48
1
256
17
240
113
144
97
This is an Order16 pandiagonal pure magic square so uses the consecutive numbers from
1 to 256.
Each of the 16 rows, columns, and diagonals sum to the constant 2056
The E. S. each also sum to 2056 and the H. H. each sum to 2056 x 2.
Constructed in Sept./98 by E.W. Shineman, Jr. for myself. Thanks Ed.
Update: Sept. 14, 2001
After investigating the Franklin 16x16 squares, I did the same tests on this one. Here are
the results of that test.
If there are 16 cells in the pattern, they sum to S. If there are
only 4 cells to a pattern, their sum is S/4, and 8 cell patterns produce S/2.
The word ‘All’ with no qualifier means that the pattern may be started at ANYof
the 256 cells of the magic square.
All rows of 16 cells. All columns of 16 cells. All rows of 8 cells starting on EVEN columns All columns of 8 cells starting on rows 8 & 16 All rows of 4 cells starting on EVEN columns All columns of 4 cells starting on rows 2 & 10 All rows of 2 cells starting on EVEN columns All 16 cell diagonals All 2x2 square arrays Corners of all even squares All 16 cell small patterns (fully symmetrical within a 6x6 or 8x8 square array) All 16 cell midsize patterns (fully symmetrical within a 10 or 12 square array) All 16 cell large patterns (fully symmetrical within a 14 or 16 square array) All horizontal 2cell segment bentdiagonals All vertical 2cell segment bentdiagonals, R, L starting on ODD rows All vertical 2cell segment bentdiagonals, L, R starting on EVEN rows All horizontal 4cell segment bentdiagonals starting in column 4, 8, 12 and 16 All vertical 4cell segment bentdiagonals starting in column 2, 6, 10, 14 NO 8cell segment (regular) bentdiagonals All knightmove horizontal 8cell segment, bentdiagonals All knightmove vertical 8cell segment, bentdiagonals
See more on the Franklin page

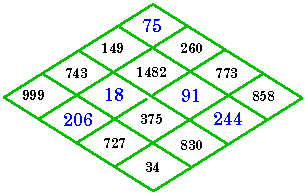

Constructed by E. W. Shineman, Jr. , treasurer, to commemorate his company's 75^{th} (Diamond) Anniversary in 1966. It contains 5 special numbers.
75 The anniversary.
18 & 91 1891 The year the company was founded.
206 Net sales in 1966 (millions of dollars).
244 Net earnings (cents per share).
24 combinations of 4 numbers sum to 1966.

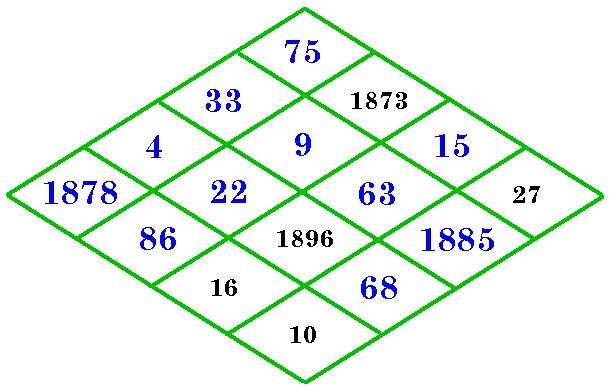

Also constructed by E. W. Shineman, Jr., this in 1990 for his 75^{th} birthday.
This one contains 11 special numbers.
75 Age on reaching diamond anniversary.
33 (1933) Year graduated from high school.
4915 Date of birth.
1878 Year father was born.
22 Age when graduated from college
86 (1886) Birthyear of Fatherinlaw &
motherinlaw
1885 Year mother was born.
63 & 68 (1963 &1968) Years of career milestones
24 combinations of 4 numbers sum to 1990.

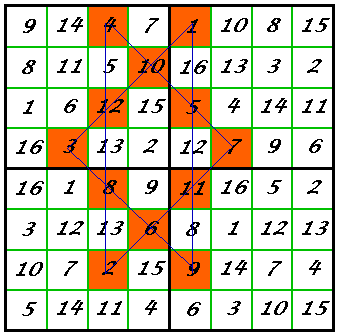

This order8 magic square is composed of four order4 pure magic squares. The
embedded magic star is index # 16 and is supermagic (the points also sum to the constant
34).
The index numbers of the magic squares are:
upper left # 390 equivalent upper right # 142 the basic solution
lower left # 724 equivalent lower right # 271 equivalent
The equivalent solutions require rotations and/or reflections in order to match the basic
solution # shown.
Frénicle, assigned these magic square index numbers about 1675, when he published a
list of all 880 basic solutions for the order4 magic square. For more information, see
Benson & Jacoby, New Recreations with Magic Squares, Dover Publ., 1976.
The magic star index numbers were designed and assigned by me and a full description appears at Magic Star Definitions.
Thanks to Arto Juhani Heino who emailed me this pattern on Jul. 15/98.

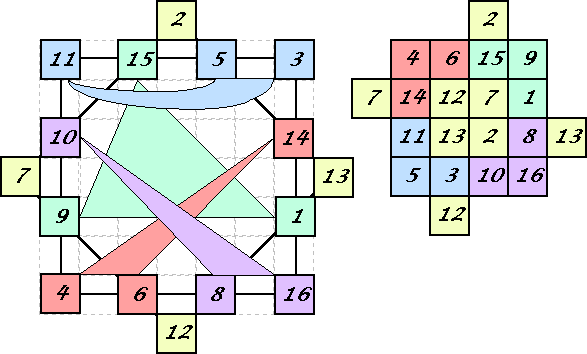

This diagram shows some relationships between an order8B magic star and an order4
magic square.
Both patterns are basic solutions. The star is index # 57 (Heinz) and the square is index
# 666 (Frénicle).
Thanks to Arto Juhani Heino for this design.

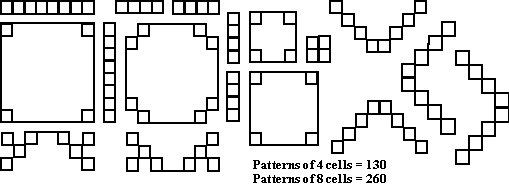

This magic square was constructed by Benjamin Franklin (17061790). It has many interesting properties as illustrated by the following cell patterns. Because the square is continuous, (wraps around), each pattern is repeated 64 times ( 8 in each direction). However, because the main diagonals do not sum correctly (one totals 260  32 & the other 260 + 32), it is not a true magic square.
Franklin also constructed an order16 magic square with similar properties. It also has the property that any 4 by 4 square sums to the constant, 2056, as well as some other combinations. See my Franklin page for more on all of Ben Franklin squares (and his magic circle)
This order6 magic square is constructed from the first 36 multiples of 6, and has a magic sum of 666.
I received this beastly square from
This square contains many hidden 3digit palindromes (which I indicate here in blue). The top left 3 by 3 square is magic with S = 252. The bottom left 3 by 3 square is magic with S = 414. The 3 row of 3 cells in top right corner sum to 414. The 3 row of 3 cells in bottom right corner sum to 252. The corners of the 3 squares working from the outside to the center, each sum to 444. The 6 by 6 border cells sum to 2220 which equals 666 + 888 + 666. The border cells of the central 4 by 4 square sum to 1332 which equals 666 + 666. The top half of the righthand column sums to 252 and the bottom half to 414. The top half of the column next to it sums to 414 and the bottom half to 252. By dividing each number in the magic square by 6, a new magic square is obtained, with S = 111. What other features still await discovery?

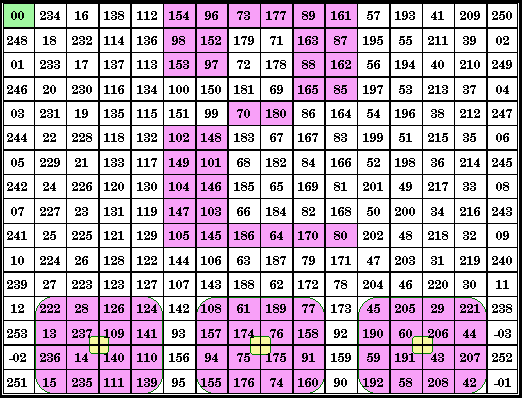

Edward W. Shineman, Jr. designed this magic square to commemorate the
start of the new century (and millenium). It is an order 16 pandiagonal using numbers from –3 to 253 with one number not used. (Can you find the missing number?) Each row, column and
diagonal, including the broken diagonal pairs, sum to 2000. In addition, the three groups
of sixteen numbers (the zeros) each sum to 2000.
NOTE: There is controversy as to whether the year 2000 is part of the 20^{th} or the 21^{st} century (and the 2^{nd} or 3^{rd} millennium). Here we consider it to be the latter.

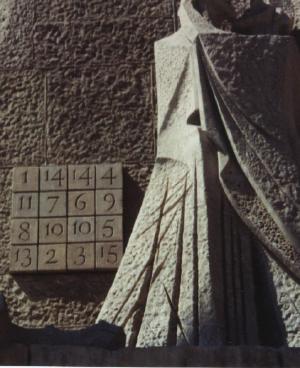

The Sagrada Familia cathedral in Barcelona, Spain,
contains the unusual magic square shown in the two pictures below.
Both the number 10 and the number 14 are repeated twice and there is no 12 or 16. The
magic sum is 33.
Does anyone know the significance of this magic square?
Many people have speculated that 33 signifies
Jesus Christ's age at the time of his crucifixion.
These pictures were taken by
Jorge Posada and are dedicated to his girlfriend Maite. Thank you Jorge,
for the pictures and for drawing this item to my attention. The picture below shows the placement in the cathedral but is of unknown origin. Alex Cohn (email July 15/01) points out that this square also appears multiple times on the main facade of the incompleted church.
The Sagrada Familia cathedral is the most important work of Gaudi, a spanish architect considered as a true genius. He worked on this building from 1882 until his death in 1926. Although it is not completed yet, it is the most important and amazing building in Barcelona. It has no roof so far, for instance, but there is a saying in Barcelona: "The only worthy roof for the Sagrada Familia is the sky". There is some information about the cathedral in: http://www.greatbuildings.com/buildings/Sagrada_Familia.html
Lee Sallows (July12,2001) points out that magic squares
with a magic sum of 33 may be constructed without using duplicate integers.
